LED Recessed Downlights

Keystone 6" LED Recessed Downlight, Wattage and Color Selectable, 120-277V

SKU: KT-RDLED18PS-6A-9CSE-VDIM | Ordering Code: KT-RDLED18PS-6A-9CSE-VDIM  | UPC: 843654137117

$44.39each
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

Add 3 to your cart to get free ground shipping *

Options

Brightness (Lumens)
725 1050 1500 1500 2000 2500
Diameter (in)
8.4 10.1

Product Highlights

  • Estimated life of 45.7 years based on 3 hours use per day
  • Adjustable color
  • Adjustable wattage
Description
  • ENERGY
    STAR
  • Wattage
    Selectable
  • Color
    Selectable

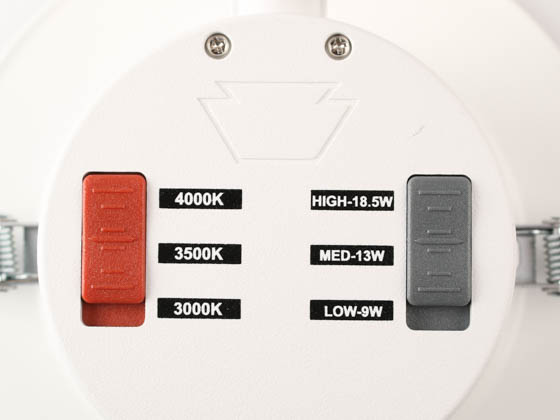

Keystone dimmable wattage selectable (9W/13W/18.5W) and color selectable (3000K/3500K/4000K) 6" LED Recessed Downlight

White baffle trim blends seamlessly into interiors and reduces glare for soft, eye-pleasing illumination.

  • JA8 compliant
  • Designed with junction box and quick disconnects for easy installation
  • Ideal for new construction, remodel and retrofit applications
  • Diffused lens reduces glare
  • 0-10V dimming
  • Can fit a 6", 7" or 8" opening

  • Mounts directly into the ceiling, no housing required

  • 120-277V, Dimmable at 120V only

  • IC rated
  • Lumens shown are based on the 3500K setting

Product Documents

Full Specs

Brand

Keystone

Model Number

KT-RDLED18PS-6A-9CSE-VDIM
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
9/13/18.5 Watts
Fluorescent Equivalent
The total wattage of fluorescent lamps in a fixture that this fixture replaces.
18

Line Voltage

120-277
Base
The end (or ends) of the lamp that fits into the socket.
Wired
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
90
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/3500/4000
Lowest Color Temperature (Kelvin)
The warmest color temperature that can be set for a color-tuneable product.
3000
Highest Color Temperature (Kelvin)
The coolest color temperature that can be set for a color-tuneable product.
4000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
725/1050/1500
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-4 to 104
Beam Angle (°)
The width of a light beam, expressed in degrees. The beam angle is often part of the ordering code for reflector lamps. For example, a 50PAR30/HIR/NFL25 is a 50-watt PAR30 narrow flood lamp with a beam angle of 25 degrees.
110
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
4.4
Diameter (in)
Light bulbs: a measurement of a bulb's width taken at the widest point of the bulb. Fixtures: the measurement across the widest point of a circular fixture.
8.4
Finish
The decorative finish of the item.
White

Mounting

Direct to ceiling
IC Rating
IC is short for Insulation Contact. This means that any housing with the IC rating can make direct contact with ceiling insulation. Generally these housings can handle up to 100 watts of light output.
IC
Installation Type
The way in which a fixture attaches to its relevant surface.
6" Can/7" Can/6" Hole/7" Hole

Warranty

5 year limited
Damp Location
Suitable for an exterior or interior location that is subject to condensation of moisture in, on or adjacent to electrical equipment
Yes
ENERGY STAR Certified
ENERGY STAR is a program created jointly by the U.S, Environmental Protection Agency and the U.S. Department of Energy to help people save money and protect the environment by using energy-efficient electronics and appliances. ENERGY STAR-certified devices use less energy without compromising functionality.
Yes
ENERGY STAR Number
Number identifying the product in ENERGY STAR certification listing.
2392592
Title 24 Compliant
California Building Energy Efficiency Standards for Residential and Non-Residential Buildings.
Yes
JA8 Compliant
The section in the 2016 California Title 24 that describes the residential lighting requirements.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
Color Selectable
Bulb is capable of emitting several different colors that are selectable by the user after it has been installed.
Yes
Wattage Selectable
Device will work with a range of different wattages.
Yes
