Parking and Area Lights

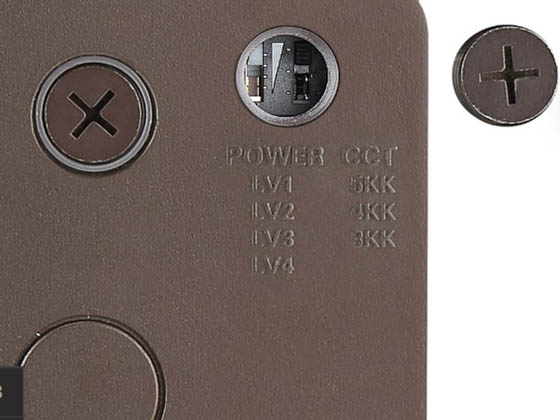

Dimmable LED Area Fixture With Yoke/Trunnion Mount & Photocell, Type III, Wattage Selectable (60W/90W/120W/140W) & Color Selectable (3000K/4000K/5000K), 400 Watt Equivalent

SKU: AF-41825 | Ordering Code: AF-140W-P0-T3-YK

$146.99each
Fixture
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

In StockReady to ship

This item qualifies for free ground shipping *

Options

Mounting
Arm Slipfitter Yoke or Trunnion

Product Highlights

  • Energy efficient replacement for a 175/250/320/400 watt HID bulb
  • Estimated life of 91.3 years based on 3 hours use per day
  • Adjustable wattage
Description
  • DLC
    Premium
  • Wattage
    Selectable

The wattage selectable (60W/90W/120W/140W) and color selectable (3000K/4000K/5000K) Slim LED Area Light fixture with yoke/trunnion mount and photocell is equivalent up to a 400 watt metal halide. Constructed with a durable one-piece die-cast aluminum housing with excellent thermal design.

Ideal for parking lots, streets and walkways.

  • Includes a yoke/trunnion mount
  • Low profile, 3G vibration rated compact design minimizes wind load requirements
  • Housing is completely sealed against moisture and environmental contaminants
  • Type III light distribution - Ideal for poles on the side of an area, allowing the light to project outward
  • Universal 120-277V
  • 0-10V dimming - Compatible with Lutron NTSTV-DV-WH and DVSTV-WH, and Legrand/Wattstopper RH4FBL3PTC and TSD4FBL3PTC dimmers
  • Suitable for mounting heights ranging from 26' to 40'



Full Specs

Brand

Value Brand
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
60/90/120/140 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
175/250/320/400

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
3000/4000/5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
10600/15500/20000/23000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
100000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 104
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
13
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
2.5
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
20.4
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum die cast

Mounting

Yoke or Trunnion

Warranty

5 year limited

Photocell

Yes
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
DLC Listing
Approved by the DesignLights Consortium, a collaboration of utility companies and regional energy efficiency organizations. Approved products meet the consortium's standards for ensuring high-quality, energy-efficient lighting design. There are three categories, Standard, Premium and Horticultural, plus Luna for light-pollution minimization.
P4VB8O5I Premium
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
